Features:

Standard thread, exceptional sealing performance

Suitable for hard tubing of OD 2.3/2.8/3.0/3.6/4.2 mm.

High temperature and pressure resistance

Hand tightening. Exceptional sealing performance up to 1 standard atmosphere.

Simple structure, easy disassembly.

The shape and size can be designed and manufactured according to customer's needs.

Application

With resistance to high temperature, high pressure, acid and alkali it can be applied in the fields of biopharmaceutical, chemical, environmental protection, food and other industries.

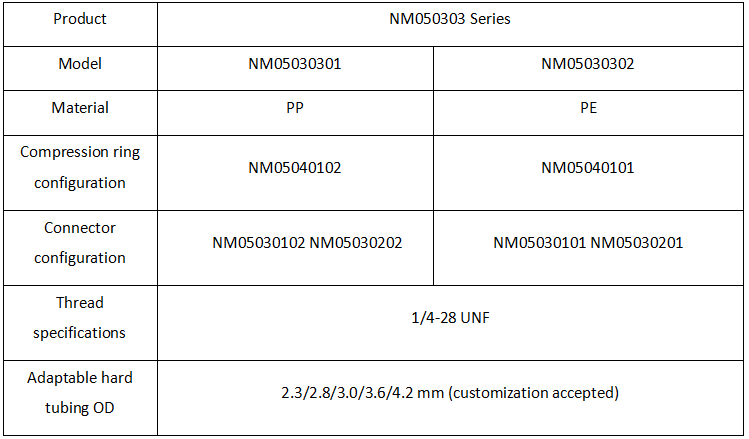

Parameters:

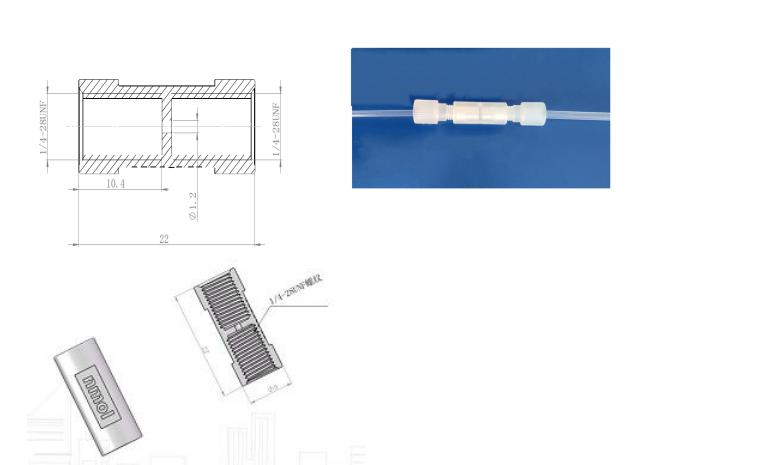

 Dimensions:(unit: mm)
