Functions

Determine the flow level in the tubing

The presence of air bubbles in the liquid flow can be detected

The presence of liquid in the gas flow can be detected.

Application

Suitable for various instruments and scientific experiments.

Features

Determine the flow level in the tubing accurately in real time..

The presence of air flow longer than 1 mm and liquid of any length in the tubing can be detected.

Not subject to the type of fluids, colour and transparency of the tubing.

Simple structure, easy disassembly

The shape and size can be designed and manufactured according to customer's needs.

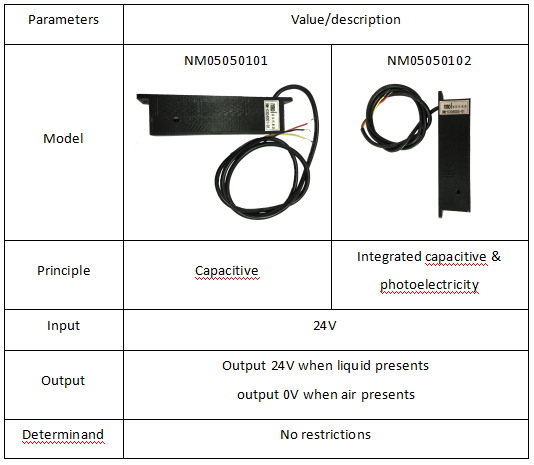

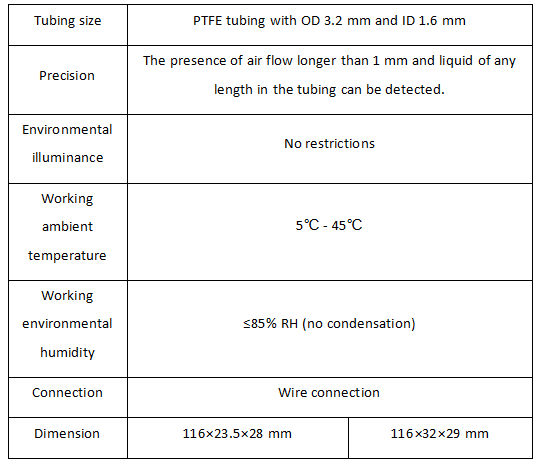

Parameters

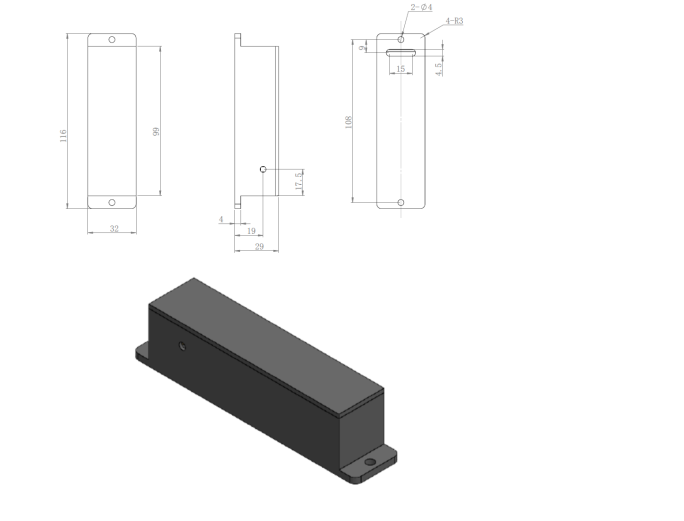

Dimension: (unit: mm)

(1) NM05050101

(2) NM05050102
