Functions

Determine the flow level in the tubing

The presence of air bubbles in the liquid flow can be detected

The presence of liquid in the gas flow can be detected.

Application

Suitable for various instruments and scientific experiments.

Features

Determine the flow level, the presence of air and the length of liquid in the tubing.

The presence of air in a continuous flow can be detected.

Simple structure, easy disassembly

The shape and size can be designed and manufactured according to customer's needs.

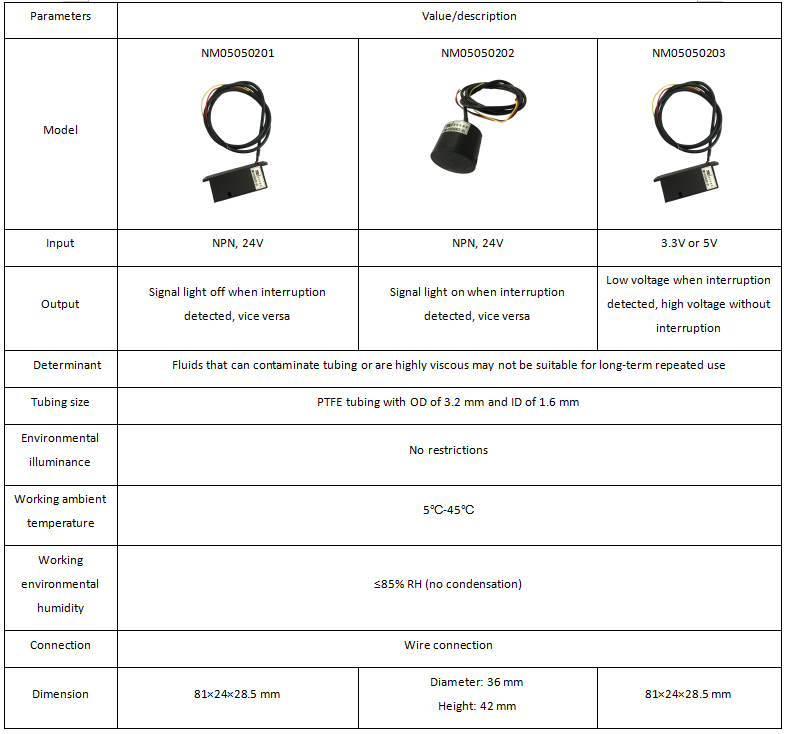

Parameters

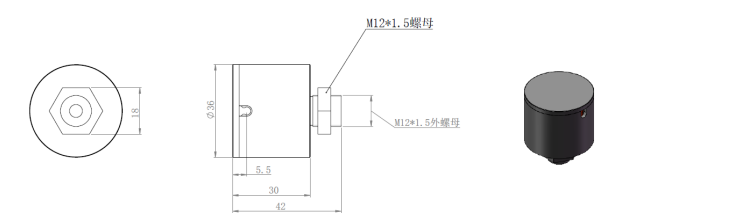

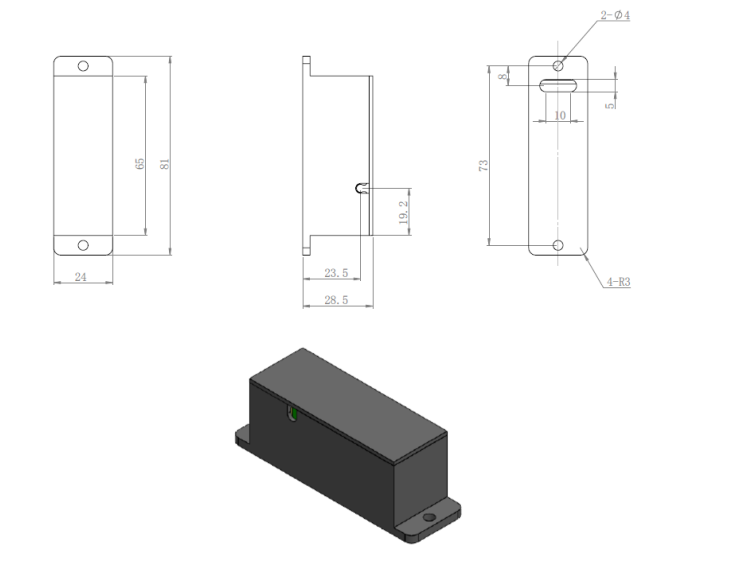

Dimensions: (unit: mm)

(1) NM05050201

(2) NM05050202

(3) NM05050203
